Model/Color

Alpha® 200i/T 5 Dog Tracking Bundle

AMD565000

Bundle (Includes T 5 Dog Device)

Available on backorder

SKU: PART NUMBER 010-02230-21 Categories: , ,

Description

Handheld Only

TT 15 Bundle

T 5 Bundle

OVERVIEW

STRONG CONNECTION. STRONG BOND.

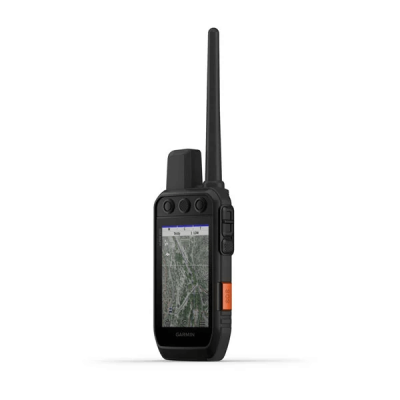

Track and train your dogs with the Alpha 200i system, featuring inReach® Iridium satellite technology, a sunlight-readable 3.5 inch capacitive touchscreen and user-friendly, six-button design.

Screen size
Designed to make tracking and training simple, accessible and fast.
Tracking, training pack icon
Track and train your pack while they’re out in the field.
Inactive dog icon
Keep inactive dogs in the system for easier setup and management.
inReach icon
inReach technology helps you keep loved ones updated when mobiles can’t (satellite subscription required).
Mapping icon
Navigate every hunt with the best in Garmin mapping and sensors.
Battery icon
User-replaceable battery lasts up to 20 hours; up to 15 hours with inReach technology enabled.

Take dog tracking

and training to the

next level.

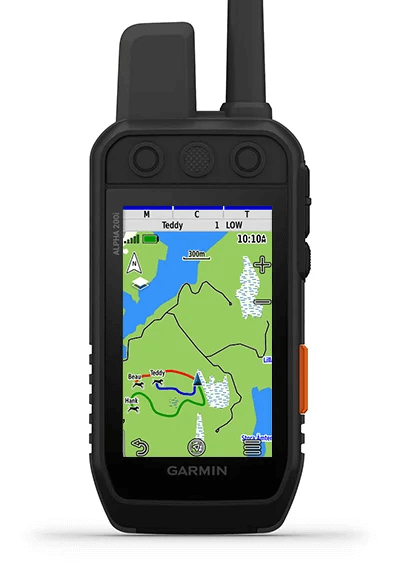

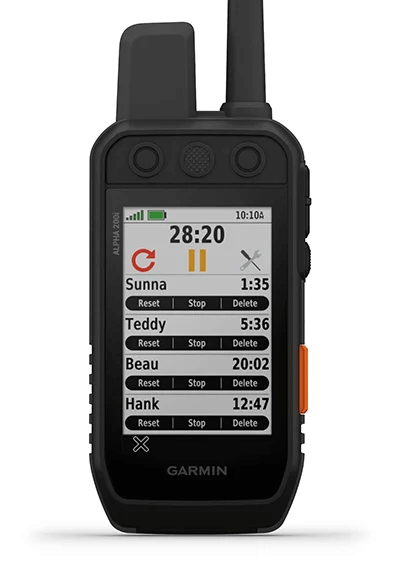

TRACK YOUR PACK

Monitor up to 20 dogs from up to 14.5 kilometres (depending on dog device) with a 2.5-second update rate. Pair with T 5 or T 5 mini dog devices (sold separately or as a bundle).

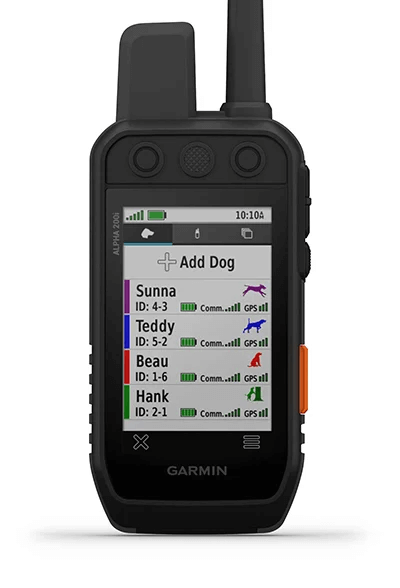

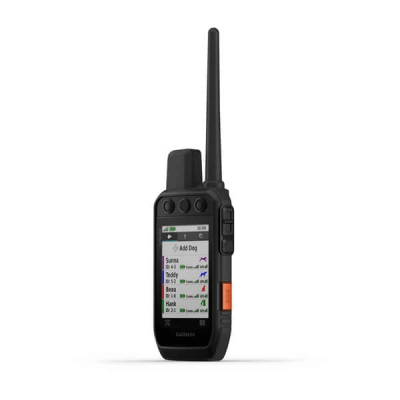

DOG LIST/GROUP MANAGEMENT

Keep inactive dogs in your dog list, and manage active groups so you don’t have to add and remove dogs for every hunt. Pair with T 5 or T 5 mini dog devices (sold separately or as a bundle).

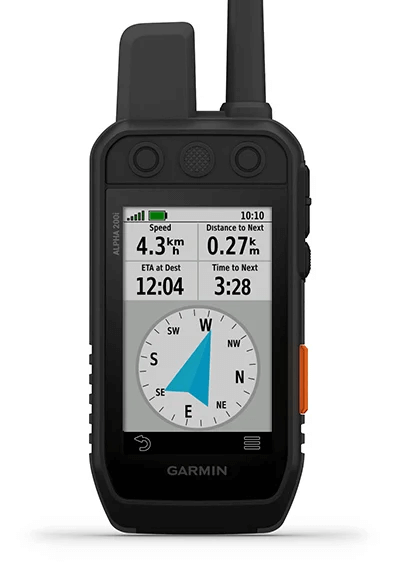

PRO VIEW COMPASS

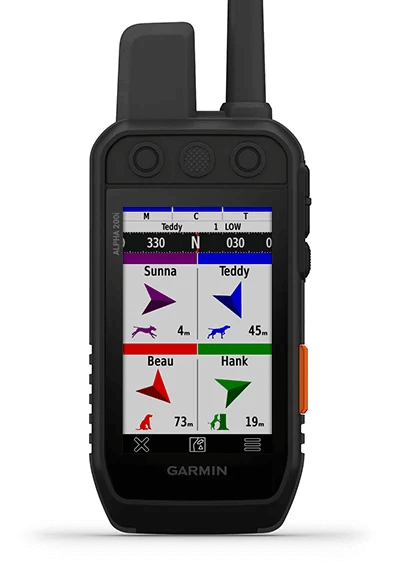

The pro view compass mode gives you simple, at-a-glance tracking that shows which direction and how far away your dogs are, plus you will see when a dog is Treed or OnPoint.

Navigate your

surroundings.

MULTI-GNSS SUPPORT

Access multiple global navigation satellite systems (GPS and Galileo) to track your pack with greater accuracy than GPS alone.

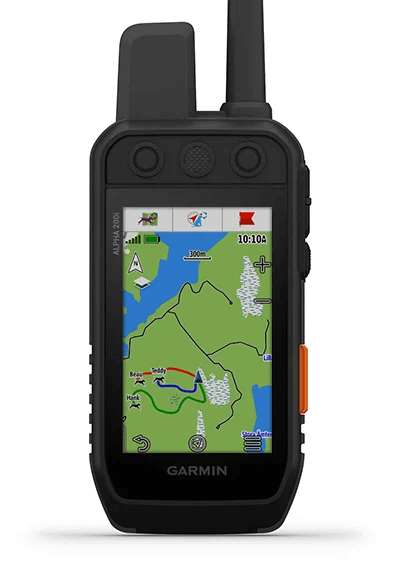

TOPOACTIVE EUROPE MAPS

Our preloaded TopoActive Europe mapping provides detailed views of terrain contours, topographic elevations, summits, parks, coastlines, rivers, lakes and geographical points.

BIRDSEYE SATELLITE IMAGERY

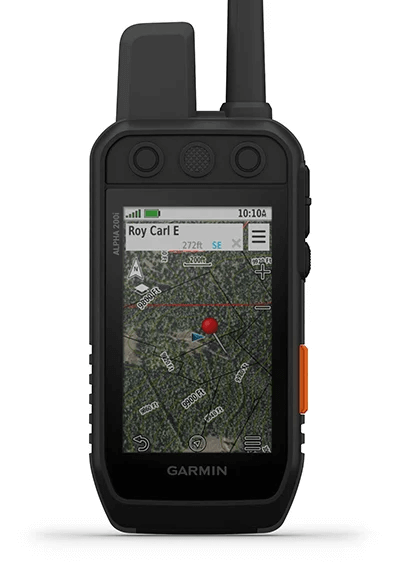

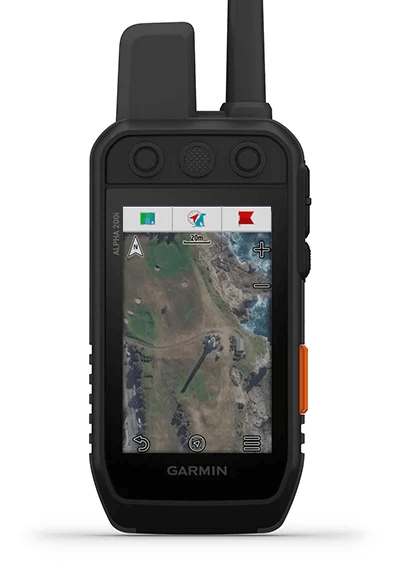

Download BirdsEye Satellite Imagery directly to the handheld for better-than-real-life views of your route, trailheads, clearings and more.

NAVIGATION SENSORS

A barometric altimeter helps you accurately monitor ascent and descent and see short-term trends in air pressure, and the built-in tilt-compensated three-axis electronic compass keeps your bearing — whether you’re moving or not.

SEE IT ALL

The sunlight-readable 3.5 inch capacitive touchscreen display makes it easy to see and interact with your maps, dog data and more.

STAY ON THE MOVE

Replaceable battery lasts up to 20 hours, or up to 15 hours with inReach technology enabled.

ADDITIONAL MAPPING

The microSD card slot allows you to load more mapping options, such as TopoPro maps (sold separately).

Stay in touch

using inReach

technology.

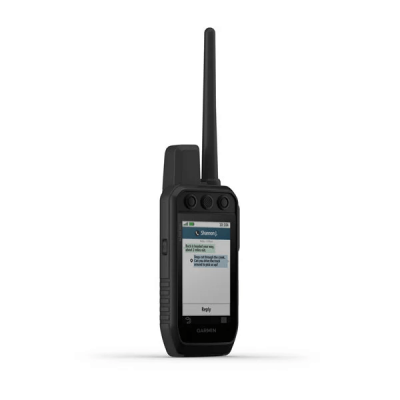

TWO-WAY MESSAGING

Exchange text messages with loved ones, post to social media, or communicate inReach to inReach in the field (satellite subscription required).

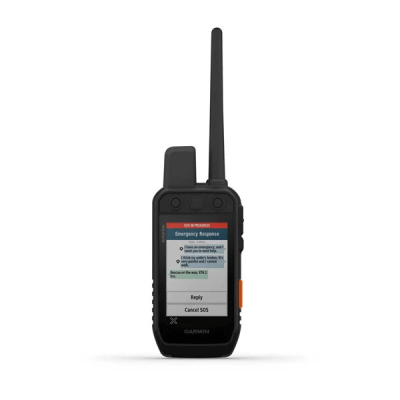

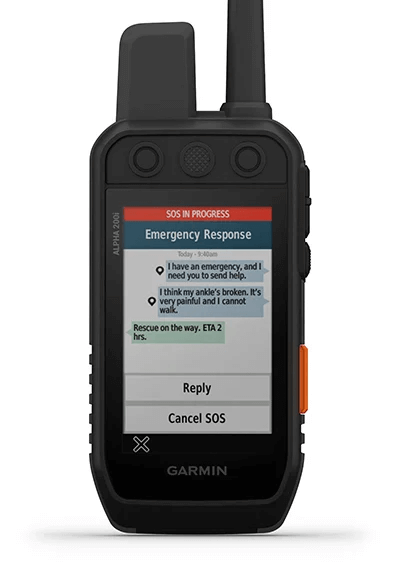

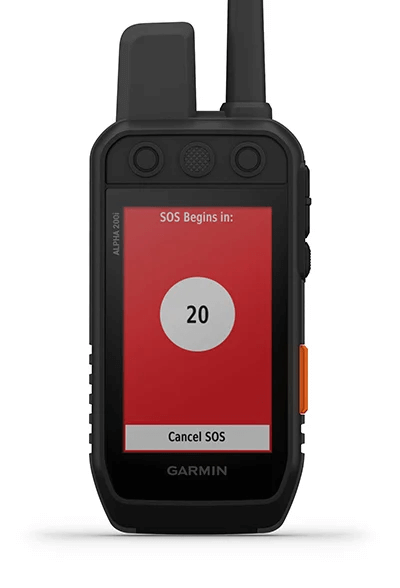

INTERACTIVE SOS

In case of emergency, trigger an interactive SOS message to GEOS, a professional 24/7 global monitoring and response centre (satellite subscription required).

LOCATION SHARING

Track your location, and share it with those at home or out in the field so they can see your progress or ping your device for your GPS location and more (satellite subscription required).

100% GLOBAL IRIDIUM® SATELLITE NETWORK

Instead of relying on cellphone coverage, now your messages, SOS alerts and tracking are transferred via the global Iridium satellite network (satellite subscription required).

SPECS

General

PHYSICAL DIMENSIONS6.8 x 16.2 x 3.4 cm *dimensions do not include antenna
TOUCHSCREEN
DISPLAY SIZE4.7 W x 7.7 H cm; 3.5 inch diag (88.9 mm)
DISPLAY RESOLUTION282 x 470 pixels
DISPLAY TYPETransflective, colour TFT touchscreen
WEIGHT280 g with standard antenna and battery
BATTERY TYPERechargeable lithium-ion (included)
BATTERY LIFEUp to 20 hours; up to 15 hours with inReach® technology enabled
WATER RATINGIPX7
HIGH-SENSITIVITY RECEIVER
INTERFACEHigh-speed USB
MEMORY/HISTORY16 GB

Maps & memory

PRELOADED MAPSYes (TopoActive Europe)
ABILITY TO ADD MAPS
BASEMAP
AUTOMATIC ROUTING (TURN BY TURN ROUTING ON ROADS)Yes (with optional mapping for detailed roads)
BIRDSEYEYes, direct to device (no annual subscription required)
STORAGE AND POWER CAPACITYmicroSD card (not included)
WAYPOINTS/FAVOURITES/LOCATIONS10,000
TRACKSUp to 20 dogs (TT 15/TT 15 mini and T5/T 5 mini) and buddies (Alpha 100 and Alpha 200i) simultaneously
TRACK LOG20,000 points, 250 saved gpx tracks, 300 saved fit activities
ROUTES250

Sensors

BAROMETRIC ALTIMETER
COMPASSYes (tilt-compensated 3-axis)

Safety and Tracking Features

LIVETRACKYes (with Garmin Explore™)

Outdoor Recreation

SUN AND MOON INFORMATION
CUSTOM MAPS COMPATIBLE

inReach® features

INTERACTIVE SOS
SEND AND RECEIVE TEXT MESSAGES TO SMS AND EMAIL
EXCHANGE LOCATIONS WITH OTHER INREACH DEVICE
VIRTUAL KEYBOARD FOR CUSTOM MESSAGING
SEND WAYPOINTS TO MAPSHARE DURING TRIP
SEND ROUTE SELECTION TO MAPSHARE DURING TRIP

Two-way Radio Features

FREQUENCY BANDVHF
RANGETT 15/T 5, 14.5 kilometres; TT 15 mini/T 5 mini, 6.5 kilometres

Outdoor applications

COMPATIBLE WITH GARMIN EXPLORE™ APP
GARMIN EXPLORE WEBSITE COMPATIBLE

Connections

WIRELESS CONNECTIVITYYes (Wi-Fi®, Bluetooth® and ANT+®)
IN THE BOX
  • Alpha® 200i handheld with rechargeable lithium-ion battery pack
  • T 5 dog device with rechargeable lithium-ion battery pack
  • 2.5 cm orange collar strap
  • Belt clip
  • AC adapter
  • Charge cable (for T 5)
  • USB cables (micro and mini)
  • Documentation
